Hedgerules can deliver CloudFront access logs to CloudWatch Logs and provision a CloudWatch dashboard, giving you real-time log queries and a live metrics overview.

Deploying CloudWatch observability#

TODO: Write more detailed docs.

For now, look at hedgerules production infrastructure as an example.

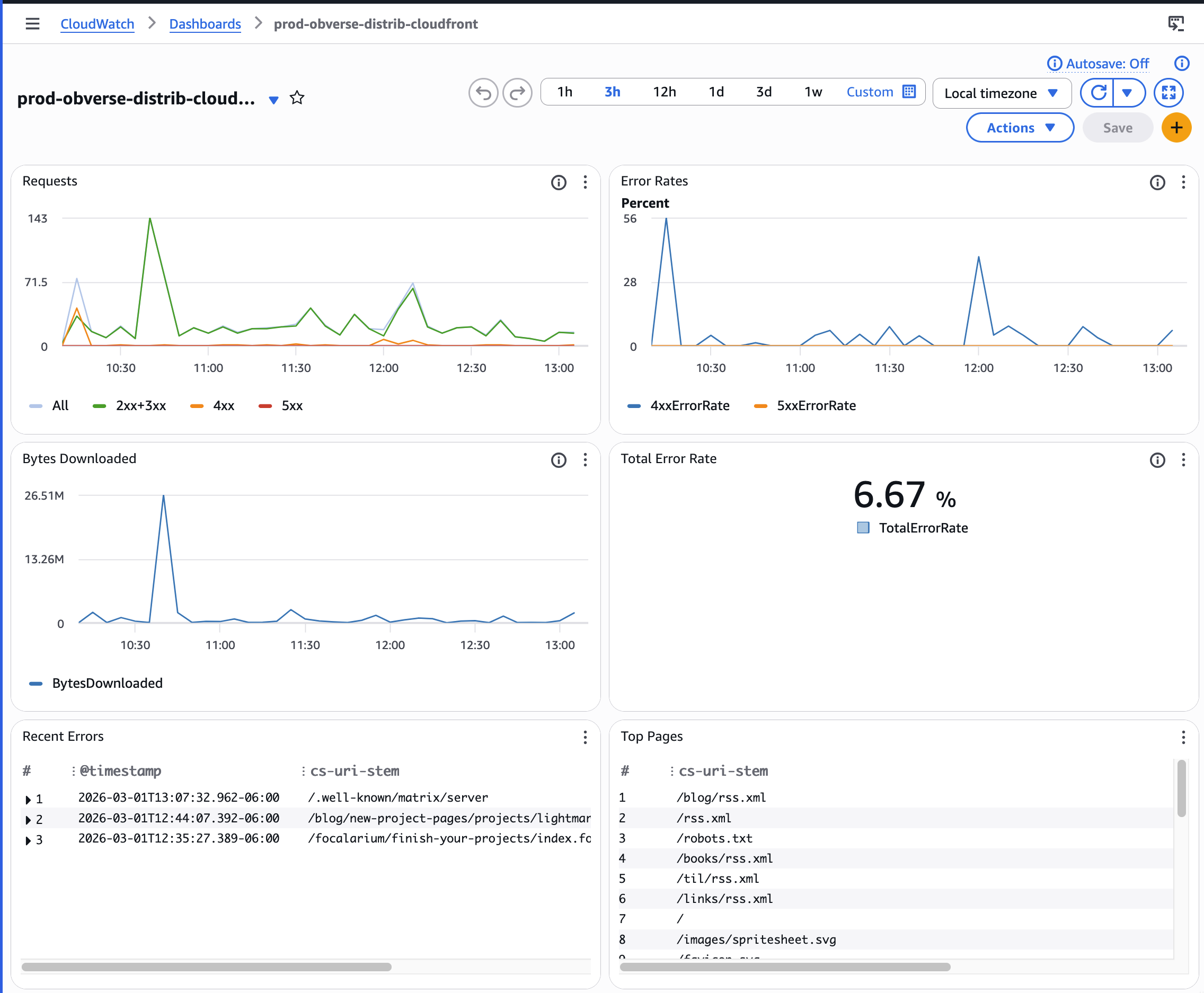

Observability dashboard#

CloudWatch dashboards provide basic observability. Here are some example screenshots from the dashboard for my main website.

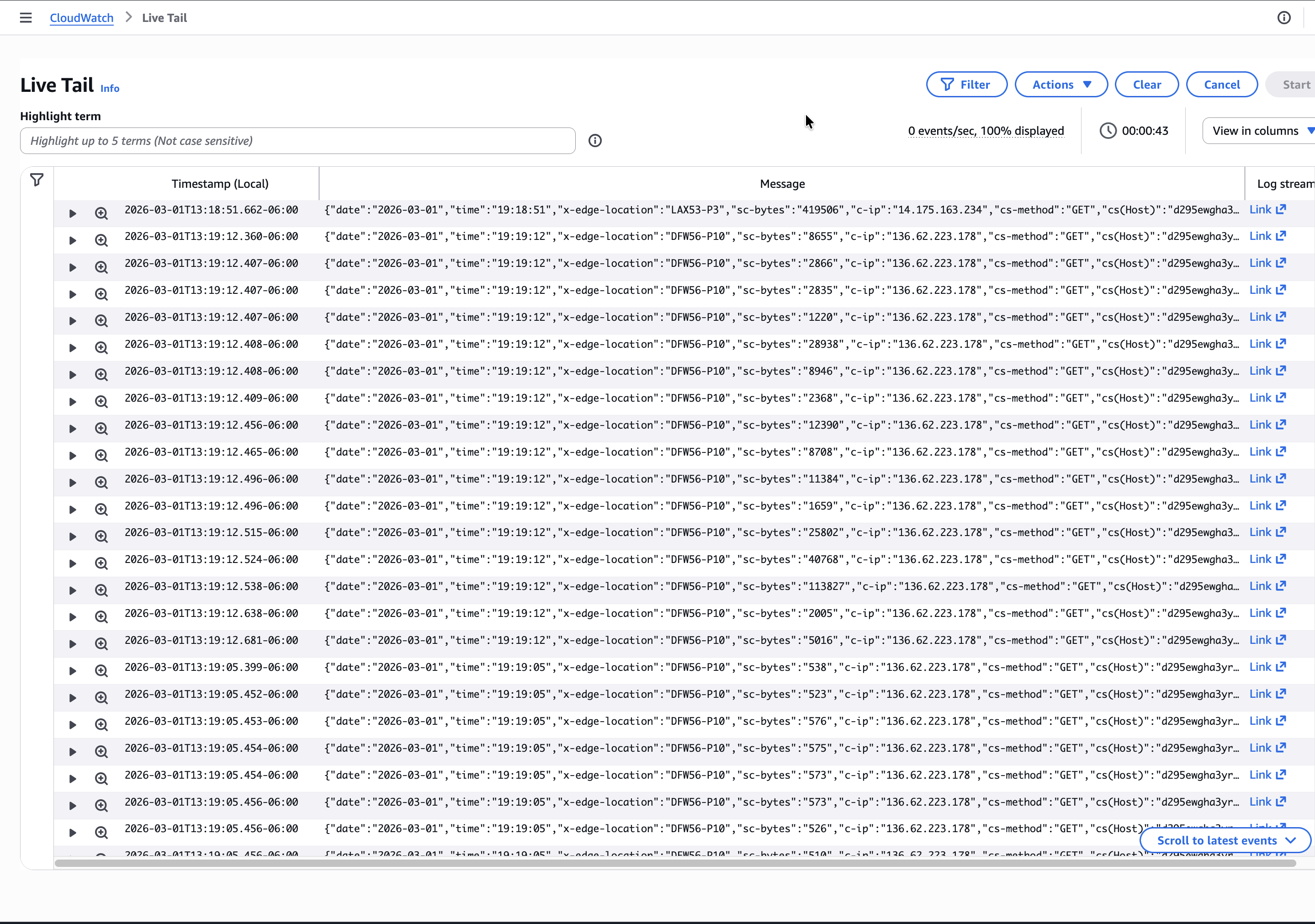

Log streaming#

CloudWatch can also show real time logs. That looks like this:

Real-time log queries#

Logs are delivered to CloudWatch Logs as structured JSON under the log group /aws/cloudfront/{stack-name}. You can query them directly in the AWS Console under CloudWatch → Logs Insights.

Select the /aws/cloudfront/{stack-name} log group, then run queries against the fields in the CloudFront access log format.

For historical trend analysis across large date ranges, you’ll want to use Athena instead.

Recent errors#

fields @timestamp, `cs-uri-stem`, `sc-status`, `c-ip`
| filter `sc-status` >= 400
| sort @timestamp desc
| limit 50

Top pages#

stats count(*) as requests by `cs-uri-stem`
| sort requests desc
| limit 25

Bot traffic#

filter `cs-user-agent` like "gptbot"
  or `cs-user-agent` like "claudebot"
  or `cs-user-agent` like "bytespider"
  or `cs-user-agent` like "ccbot"
  or `cs-user-agent` like "perplexitybot"
  or `cs-user-agent` like "amazonbot"
  or `cs-user-agent` like "google-extended"
| stats count(*) as requests by `cs-user-agent`
| sort requests desc

Traffic over time#

stats count(*) as requests by bin(1h)
| sort @timestamp asc

Top referrers#

filter `cs-referer` != "-"
| stats count(*) as requests by `cs-referer`
| sort requests desc
| limit 25

Bandwidth by page#

stats sum(`sc-bytes`) as bytes by `cs-uri-stem`
| sort bytes desc
| limit 25

Edge locations#

stats count(*) as requests by `x-edge-location`
| sort requests desc
| limit 25

Cache hit/miss breakdown#

stats count(*) as requests by `x-edge-result-type`
| sort requests desc
